Pedal operated stainless steel Mayo table 50kg load capacity

Pedal operated stainless steel Mayo table 50kg load capacity

CSOP
Call 01604 646633 for options or send an enquiry below.

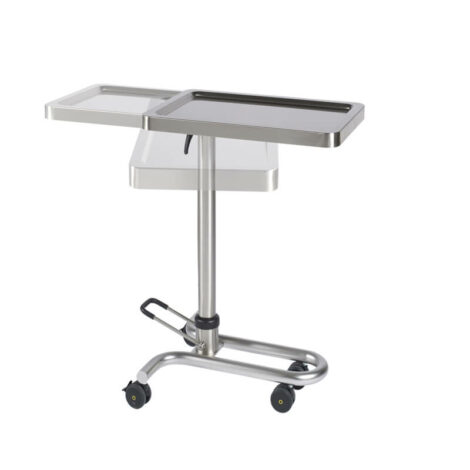

AISI304 stainless steel Mayo table with a unique pedal operated elevation mechanism.
The pedal can be installed facing the front or the rear of the table.

DIMENSIONS (MM)
600 x 400 x 830 H
variable height from 830 to 1170 mm

TRAY
Removable, 645×450 mm
Moulded, with a raised rim on all 4 sides

LOAD CAPACITY
max 50 kg evenly distributed

BASE
AISI304 stainless steel, solid round, Ø 40 mm, weighing 15 kg: extremely stable

CASTORS
4 twin swivel castors Ø 75 mm, antistatic, 2 of which with brake

ELEVATION MECHANISM
front or rear mount
stainless steel hydraulic piston, activated by pedal

Additional information

Product Type

Mayo Table

Material

top
